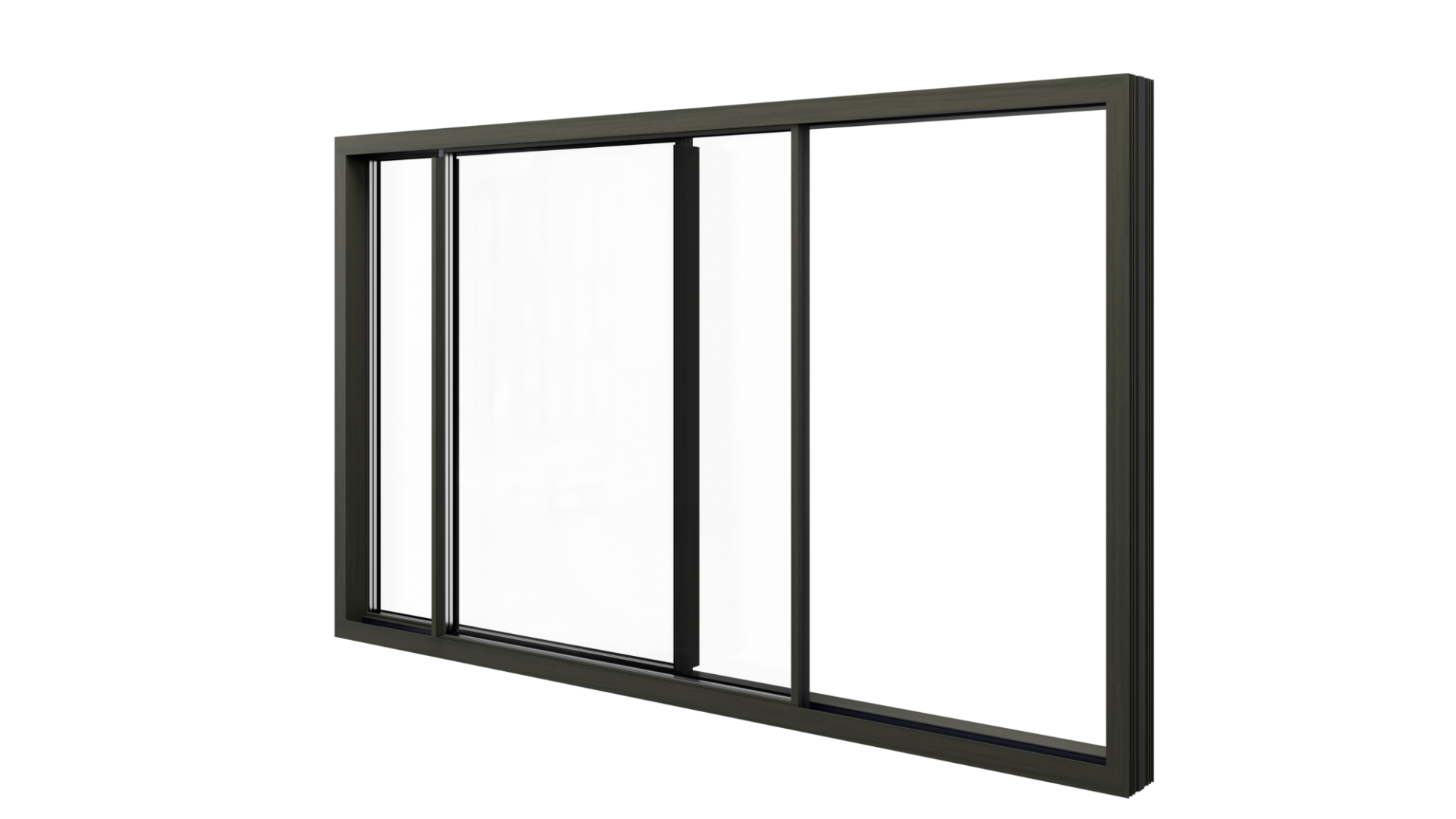

Large-scale sliding doors with a concealed frame, based on the MB-SKYLINE system, stand out for their modern and minimalist appearance achieved through the use of narrow profiles. The visible width of the door leaf joints is reduced to just 25 mm, creating almost seamless glazing with delicate dividing lines. This innovative design gives buildings a unique style, perfectly aligning with the trends in luxury construction and enhancing the prestige of the entire investment. The MB-SKYLINE system allows for the use of doors reaching impressive heights of up to 4 meters, providing designers with ample creative opportunities to achieve spectacular glazing solutions. MB-SKYLINE sliding doors can be operated manually or automatically, with drives and control units discreetly concealed within the frame profiles or mounted externally. MB-SKYLINE features profiles with a 3-chamber construction and thermal insulation UW from 0.85 W/(m2K), ensuring high thermal comfort. The glass panels, ranging from 52 to 60 mm in thickness, further enhance the thermal efficiency of the system, providing top-level insulation.

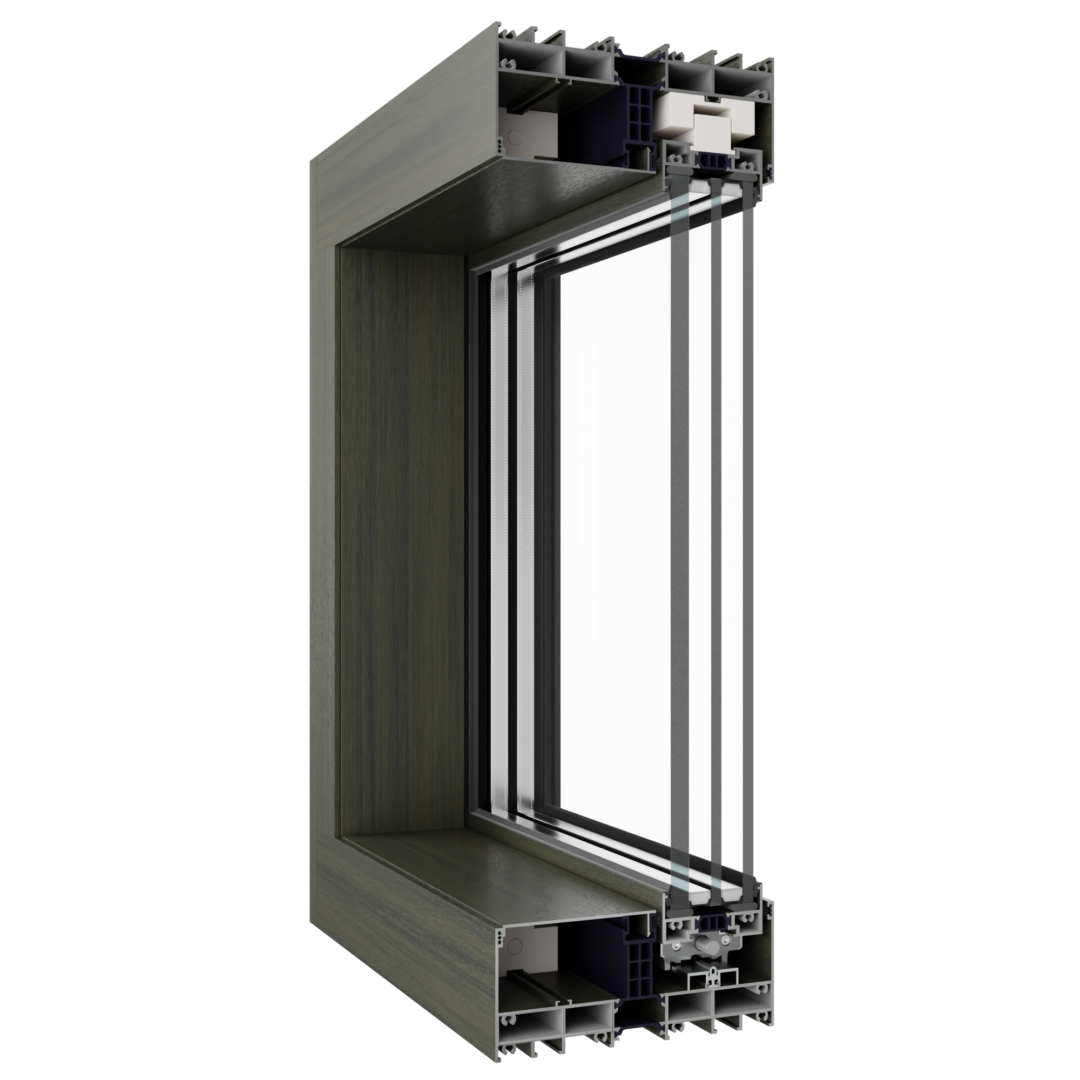

Construction of profile
- Sash – 71 mm, 2-track frame – 190 mm, 3-track frame – 292 mm.
- Modern design with a frame concealed in the walls, floor, and ceiling, and flush-mounted sashes.
- Possibility of creating door sashes weighing up to 700 kg and up to 4 meters in height.
- Profiles with 3-chamber construction and thermal insulation.
- Triple-glazed units with thicknesses ranging from 52 to 60 mm.
- Doors can be opened manually or automatically.
- Mechanisms hidden within the frame profiles or mounted externally.
- Ability to create a seamless glazing line.
- Technical parameters:
– Air permeability: class 3, EN 12207
– Watertightness: up to class 9A (600Pa), EN 12208
– Wind load resistance: up to class C5 (2000Pa), EN 12210
– Thermal insulation UW from 0.85 W/(m²K)* for doors with sash dimensions of 2.07 x 3.44 m, with triple-glazed filling, Ug coefficient of 0.5 W/(m²K), and a warm spacer.
Profile supplier
Window advantages
MICRO-VENTILATION CLIP
A fitting function that allows the room to be ventilated without opening the sash.
HANDLE
Aluminium handle with secustic, security button or key function.
BOTTOM HINGE
Also available in a concealed version – Designo. 3D hinges adjustable in three planes with a load capacity of up to 130 kg.
SPACER
The spacer is available in steel or plastic – the so-called ‘warm frame’, made with polymer or composite technology in a wide range of colours.
HANDLE ROTATION LOCK
A fitting function that enables uncontrolled turning of the handle in the tilt position, while also being responsible for the correct positioning of the sash when it is closed.
TILT&TURN FITTING
A fitting for the comfortable ventilation of rooms with an additional microventilation function and adjustable sash tilt in winter-summer mode.
MICRO-VENTILATION CLIP
A fitting function that allows the room to be ventilated without opening the sash.
HANDLE
Aluminium handle with secustic, security button or key function.
BOTTOM HINGE
Also available in a concealed version – Designo. 3D hinges adjustable in three planes with a load capacity of up to 130 kg.
SPACER
The spacer is available in steel or plastic – the so-called ‘warm frame’, made with polymer or composite technology in a wide range of colours.
HANDLE ROTATION LOCK
A fitting function that enables uncontrolled turning of the handle in the tilt position, while also being responsible for the correct positioning of the sash when it is closed.
TILT&TURN FITTING
A fitting for the comfortable ventilation of rooms with an additional microventilation function and adjustable sash tilt in winter-summer mode.
Colours of Alu Future MB-Skyline
PLEASE NOTE: The full range of colours, including non-standard veneers, is available in our showrooms and in the sales network of our Business Partners.
The presented graphic materials are for illustrative purposes only and the actual colours and textures of the products may differ from those shown in the advertising materials.
The presented graphics, including the presentation of colours, cannot constitute grounds for a complaint.
Learn about other ALUMINIUM TARADE DOORS

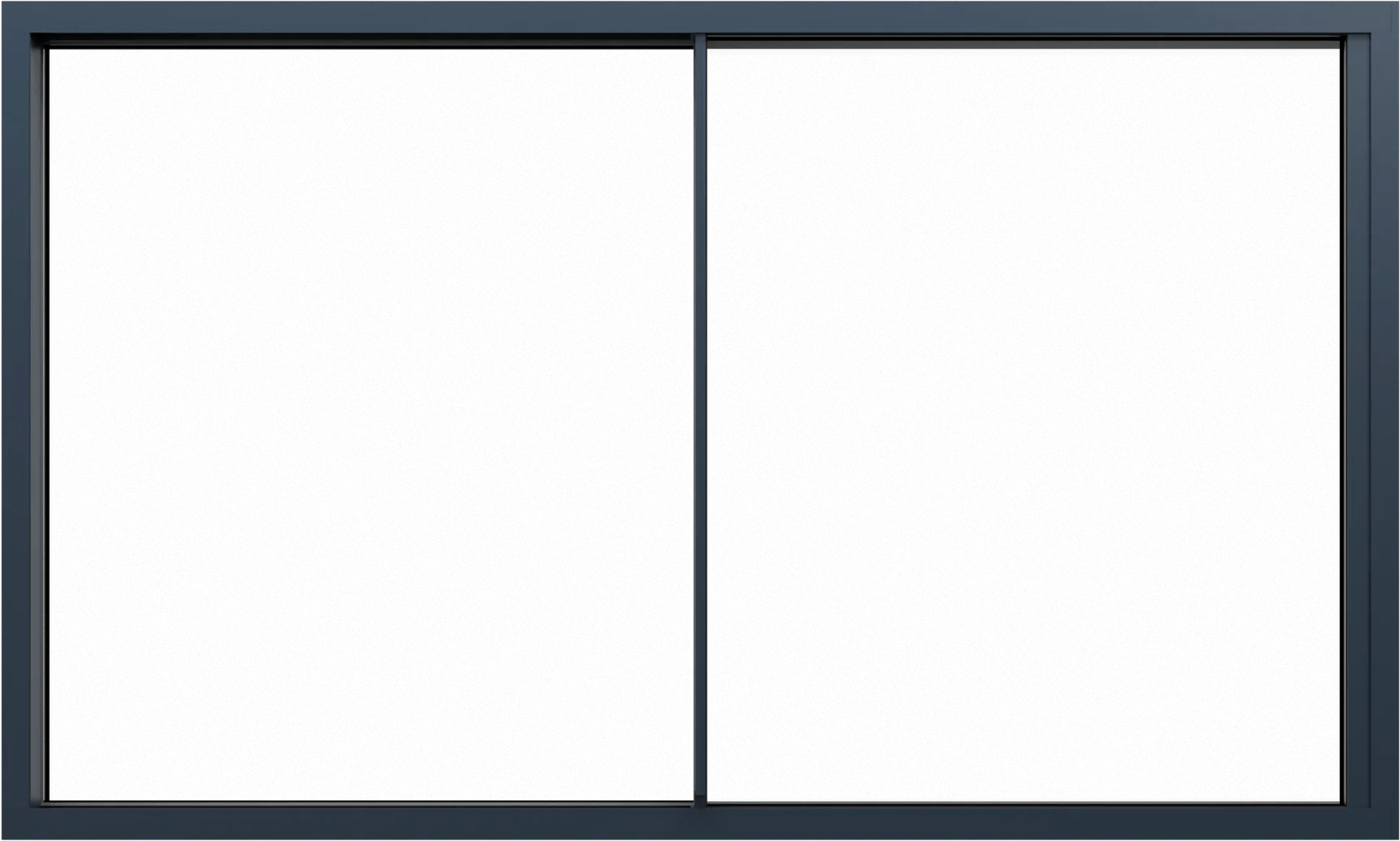

Aluprof MB-Skyline Type-R

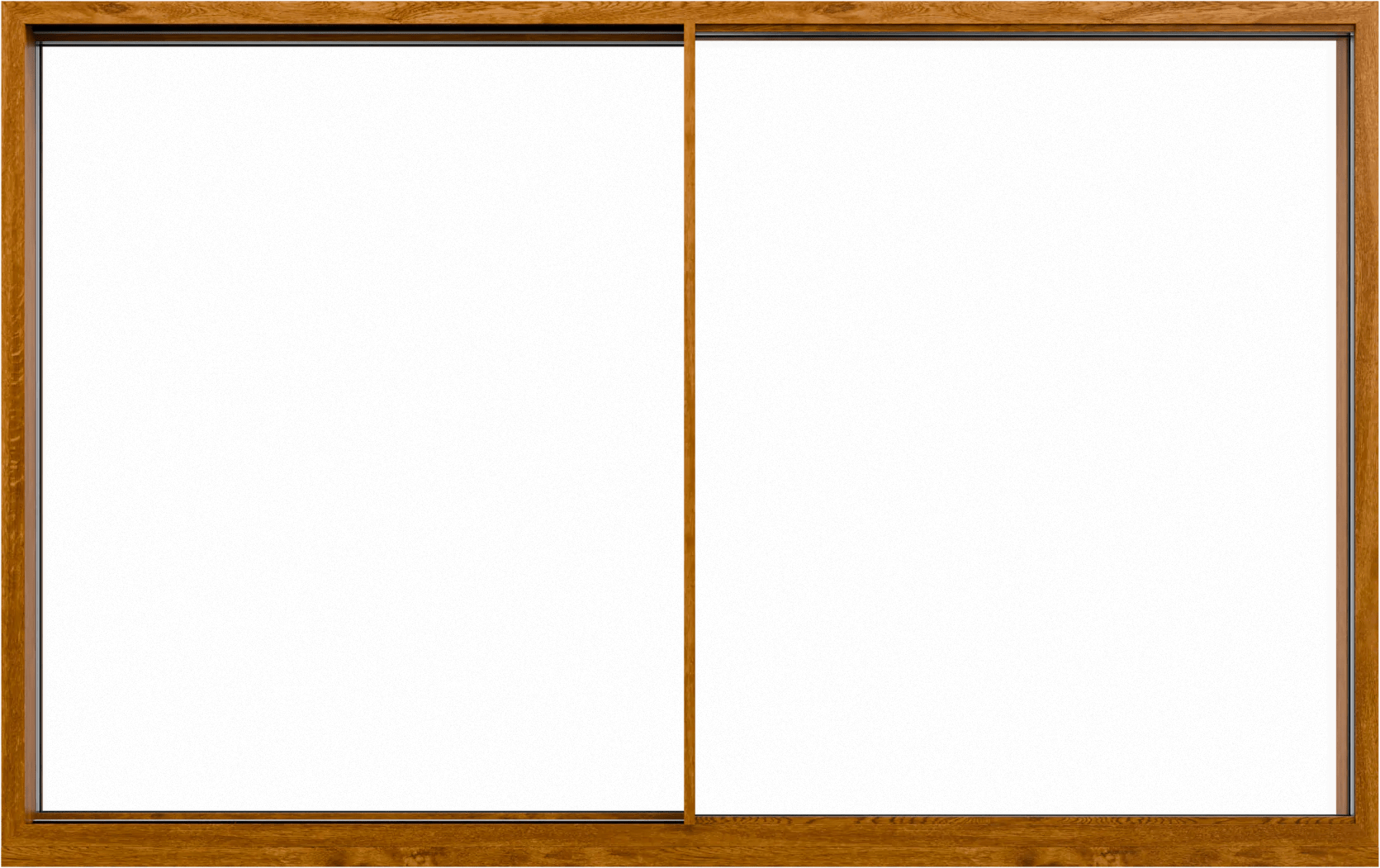

Yawal Moreview
