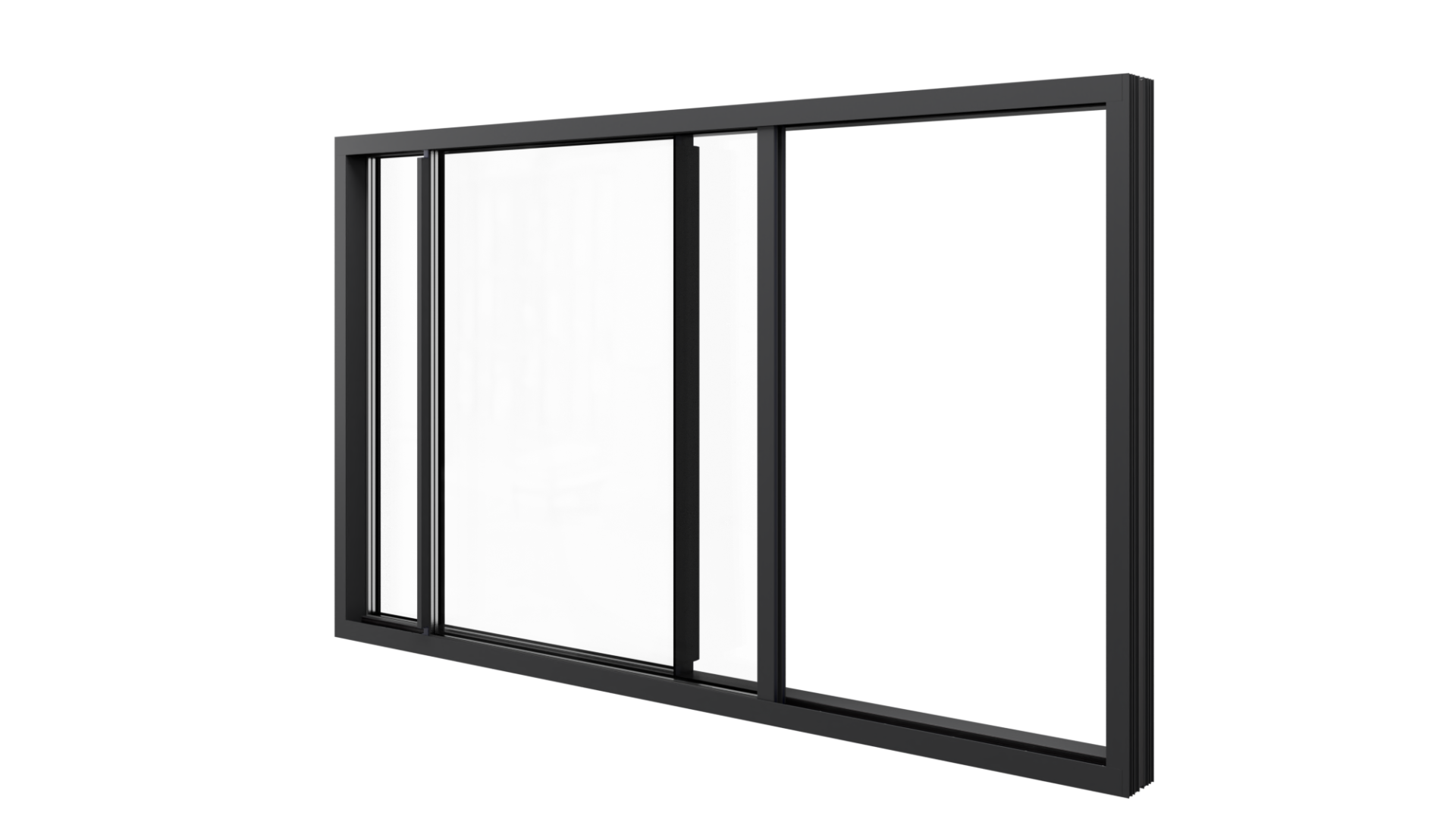

Aluprof MB-Skyline Type-R large sliding doors are synonymous with modern design and innovation. Aluprof’s Skyline Type-R system, on which these doors are based, was created for those who appreciate lightweight construction and aesthetics, while at the same time wishing to enjoy a panoramic view of the surroundings. Narrow profiles give the door a modern look, while allowing maximum light into the interior, making any space more open and welcoming. The distinctive features of MB-Skyline Type-R doors, such as the completely concealed leaf profiles and narrow mullion, provide not only aesthetic pleasure, but also practical functionality. The shallow frame allows the door to be elegantly integrated into the structure of the building, and the ease of sliding even the largest elements, which can weigh up to 1,200 kg, guarantees the comfort of everyday use. The mechanism that operates almost silently and the ability to reach a maximum height of the structure of up to 4 meters, allow the creation of spectacular glass walls, which are not only a decorative element, but also a functional solution, increasing the sense of space and closeness to nature.

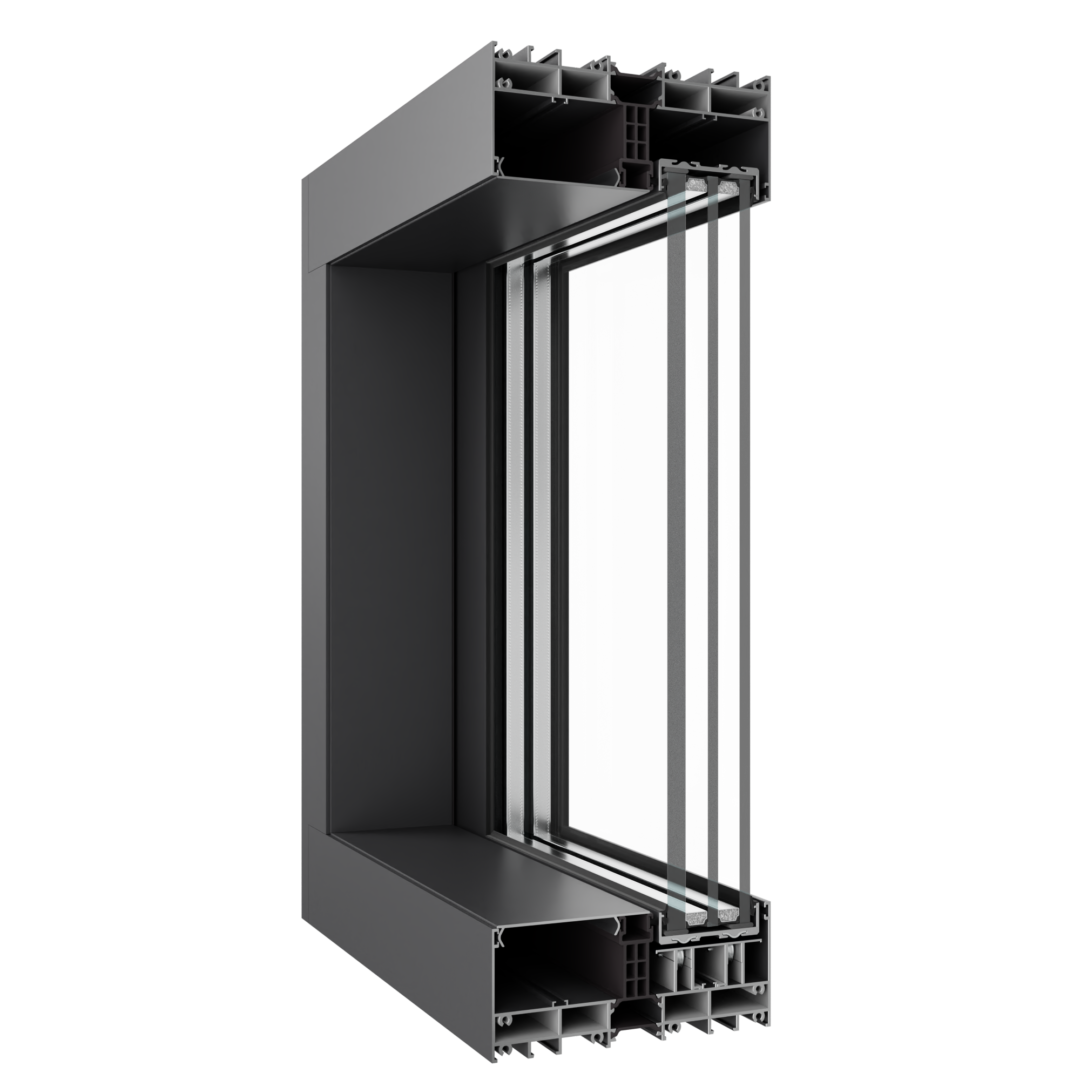

Construction of profile
- The system is characterized by completely concealed sash profiles, which gives the structure lightness and aesthetics.
- The mullion at the junction of the leaves is only 25 mm wide, which emphasizes the minimalist nature of the construction.
- The door frame is shallow, with a depth of 23 mm, which facilitates integration into the architecture of the building.
- The profiles are made of modern insulating material, which ensures high thermal performance.
- The sliding mechanism of the door works almost silently, ensuring the comfort of use.
- The maximum height of the structure can reach 4 meters, and the weight of the moving leaf can be more than 1,200 kg when using a concealed actuator.
- The system uses modern sliding seals, which are aesthetically pleasing and quiet during use.
- The MB-SKYLINE TYPE R door system meets the requirements of air permeability class up to class 4, watertightness up to class 8A, wind load resistance class C3/B3 and thermal insulation Uw from 0.80 W/(m2K).
Profile supplier
Window advantages
MICRO-VENTILATION CLIP
A fitting function that allows the room to be ventilated without opening the sash.
HANDLE
Aluminium handle with secustic, security button or key function.
BOTTOM HINGE
Also available in a concealed version – Designo. 3D hinges adjustable in three planes with a load capacity of up to 130 kg.
SPACER
The spacer is available in steel or plastic – the so-called ‘warm frame’, made with polymer or composite technology in a wide range of colours.
HANDLE ROTATION LOCK
A fitting function that enables uncontrolled turning of the handle in the tilt position, while also being responsible for the correct positioning of the sash when it is closed.
TILT&TURN FITTING
A fitting for the comfortable ventilation of rooms with an additional microventilation function and adjustable sash tilt in winter-summer mode.
MICRO-VENTILATION CLIP
A fitting function that allows the room to be ventilated without opening the sash.
HANDLE
Aluminium handle with secustic, security button or key function.
BOTTOM HINGE
Also available in a concealed version – Designo. 3D hinges adjustable in three planes with a load capacity of up to 130 kg.
SPACER
The spacer is available in steel or plastic – the so-called ‘warm frame’, made with polymer or composite technology in a wide range of colours.
HANDLE ROTATION LOCK
A fitting function that enables uncontrolled turning of the handle in the tilt position, while also being responsible for the correct positioning of the sash when it is closed.
TILT&TURN FITTING
A fitting for the comfortable ventilation of rooms with an additional microventilation function and adjustable sash tilt in winter-summer mode.
Colors Aluprof MB-Skyline Type-R
PLEASE NOTE: The full range of colours, including non-standard veneers, is available in our showrooms and in the sales network of our Business Partners.
The presented graphic materials are for illustrative purposes only and the actual colours and textures of the products may differ from those shown in the advertising materials.
The presented graphics, including the presentation of colours, cannot constitute grounds for a complaint.
