- THERMAL INSULATION
- Uw 0,62 W/(m2K)
- INSTALLATION DEPTH
- 77mm
- WINDOW ACOUSTICS
- min. 40dB
- THE GLASS PACKAGE
- 70 mm
- NO. OF SEALS
- 2
- NO. OF CELLS
- 3
- RESISTANCE TO BURGLARY
- RC4

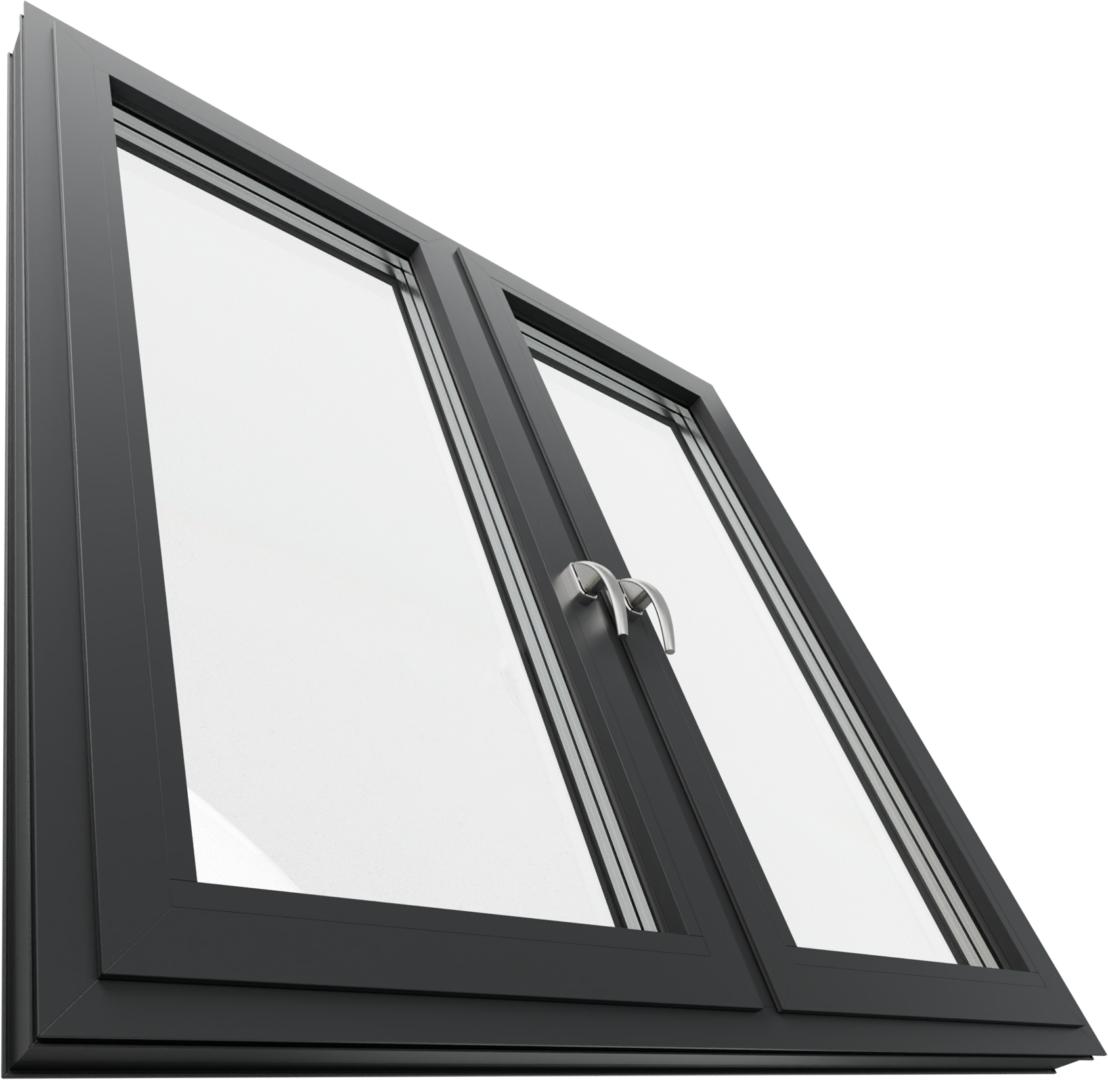

Aluprof MB-86-N windows are the perfect solution for a variety of needs. Specially tailored for projects requiring energy efficiency, as well as for passive construction and thermomodernisation. Their simple and modern shapes blend harmoniously with the body of the building. Three design variants (ST, SI and AERO) allow the product to be adapted to specific requirements for saving thermal energy. The windows are characterised by high functionality and aesthetically pleasing design thanks to a wide thermal break with a new shape and a large range of available profiles. The innovative two-component central gasket perfectly seals the space between the frame and sash. In addition, the possibility of making the window in a version with a concealed sash opens up completely new design possibilities. The robust construction guarantees safety and also allows sash weights of up to 150 kg. The glazing range of up to 67 mm (for the sash) allows the use of all types of single and double glazing found on the market.

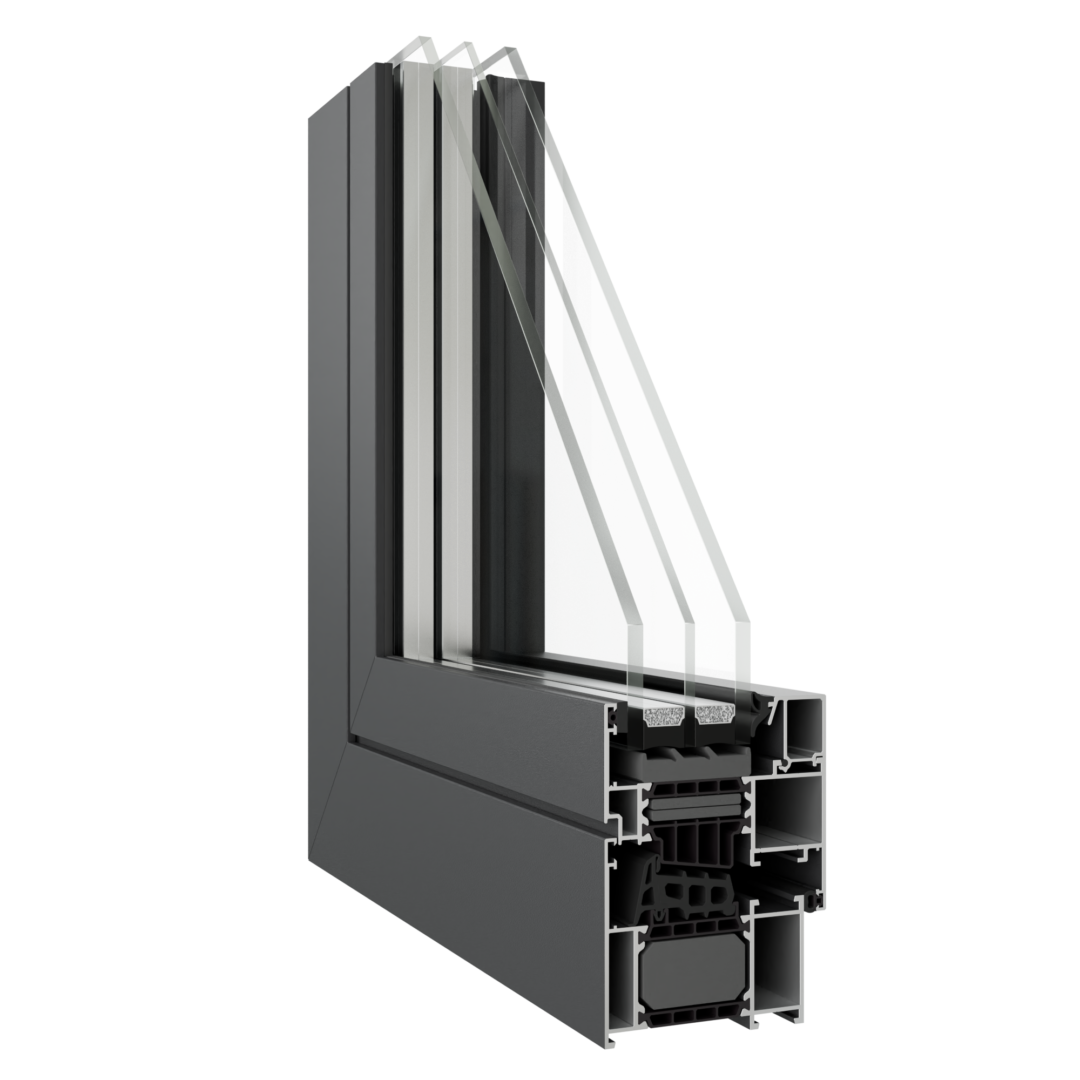

Construction of the profile
- Large selection of sections to ensure the desired aesthetics and robustness of the structure.
- Wide thermal breaks with a new shape significantly increase thermal insulation.
- A two-component central gasket guarantees excellent tightness and thermal insulation.
- Glazing bars available in Standard, Prestige and Style variants, with additional sealing.
- Profiles suitable for installation of a variety of fittings, including concealed hinges.
- Possibility of using various types of glass, including double-chambered, acoustic and burglar-proof.
- MB-86B system with ATG certificate and option of anti-burglary windows and doors in RC1 – RC4 classes.
- Two variants of profile drainage – traditional and concealed, for better protection against water.
Profile supplier
Window advantages
MICRO-VENTILATION CLIP
A fitting function that allows the room to be ventilated without opening the sash.
HANDLE
Aluminium handle with secustic, security button or key function.
BOTTOM HINGE
Also available in a concealed version – Designo. 3D hinges adjustable in three planes with a load capacity of up to 130 kg.
SPACER
The spacer is available in steel or plastic – the so-called ‘warm frame’, made with polymer or composite technology in a wide range of colours.
HANDLE ROTATION LOCK
A fitting function that enables uncontrolled turning of the handle in the tilt position, while also being responsible for the correct positioning of the sash when it is closed.
TILT&TURN FITTING
A fitting for the comfortable ventilation of rooms with an additional microventilation function and adjustable sash tilt in winter-summer mode.
MICRO-VENTILATION CLIP
A fitting function that allows the room to be ventilated without opening the sash.
HANDLE
Aluminium handle with secustic, security button or key function.
BOTTOM HINGE
Also available in a concealed version – Designo. 3D hinges adjustable in three planes with a load capacity of up to 130 kg.
SPACER
The spacer is available in steel or plastic – the so-called ‘warm frame’, made with polymer or composite technology in a wide range of colours.
HANDLE ROTATION LOCK
A fitting function that enables uncontrolled turning of the handle in the tilt position, while also being responsible for the correct positioning of the sash when it is closed.
TILT&TURN FITTING
A fitting for the comfortable ventilation of rooms with an additional microventilation function and adjustable sash tilt in winter-summer mode.
Colours Aluprof MB-86-N
PLEASE NOTE: The full range of colours, including non-standard veneers, is available in our showrooms and in the sales network of our Business Partners.
The presented graphic materials are for illustrative purposes only and the actual colours and textures of the products may differ from those shown in the advertising materials.
The presented graphics, including the presentation of colours, cannot constitute grounds for a complaint.
