- THERMAL INSULATION
- Uw 0,58 W/m2K
- WINDOWS ACOUSTICS
- 48 dB
- GLAZING PACKAGE
- 44-72mm
- BURGLARY RESISTANCE
- RC2

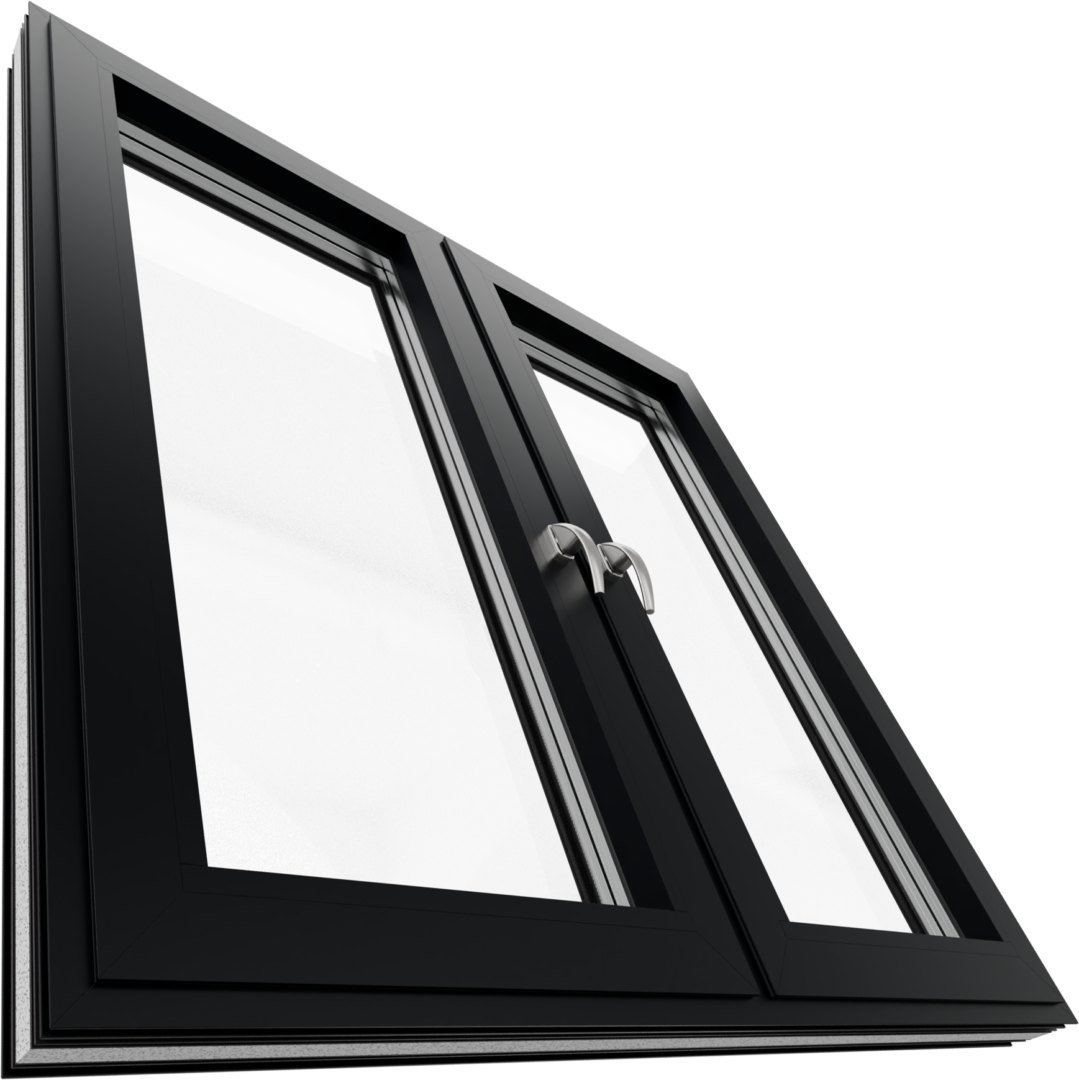

The Yawal TM 102 HI window is an ideal solution for energy-efficient and passive construction, performing excellently both in residential and public buildings. It uses a modern system of profiles by Yawal, which guarantees extremely high thermal insulation, providing comfortable interior conditions with minimum energy consumption. Thanks to the innovative construction of the window sash, the profiles are also characterised by considerable strength, which makes it possible to create large-size constructions. The maximum sash weight reaches an impressive 180 kg and the maximum dimensions reach 1400 mm x 3000 mm, making these windows extremely versatile and flexible in application. In addition, with an RC2 burglary resistance rating, they provide users with a sense of security and meet the highest safety standards. Another important aspect is the excellent air permeability of Class 4 and wind load resistance reaching Class 5, which confirms not only the high quality of the workmanship, but also the effectiveness in maintaining optimal internal conditions in a variety of weather conditions.

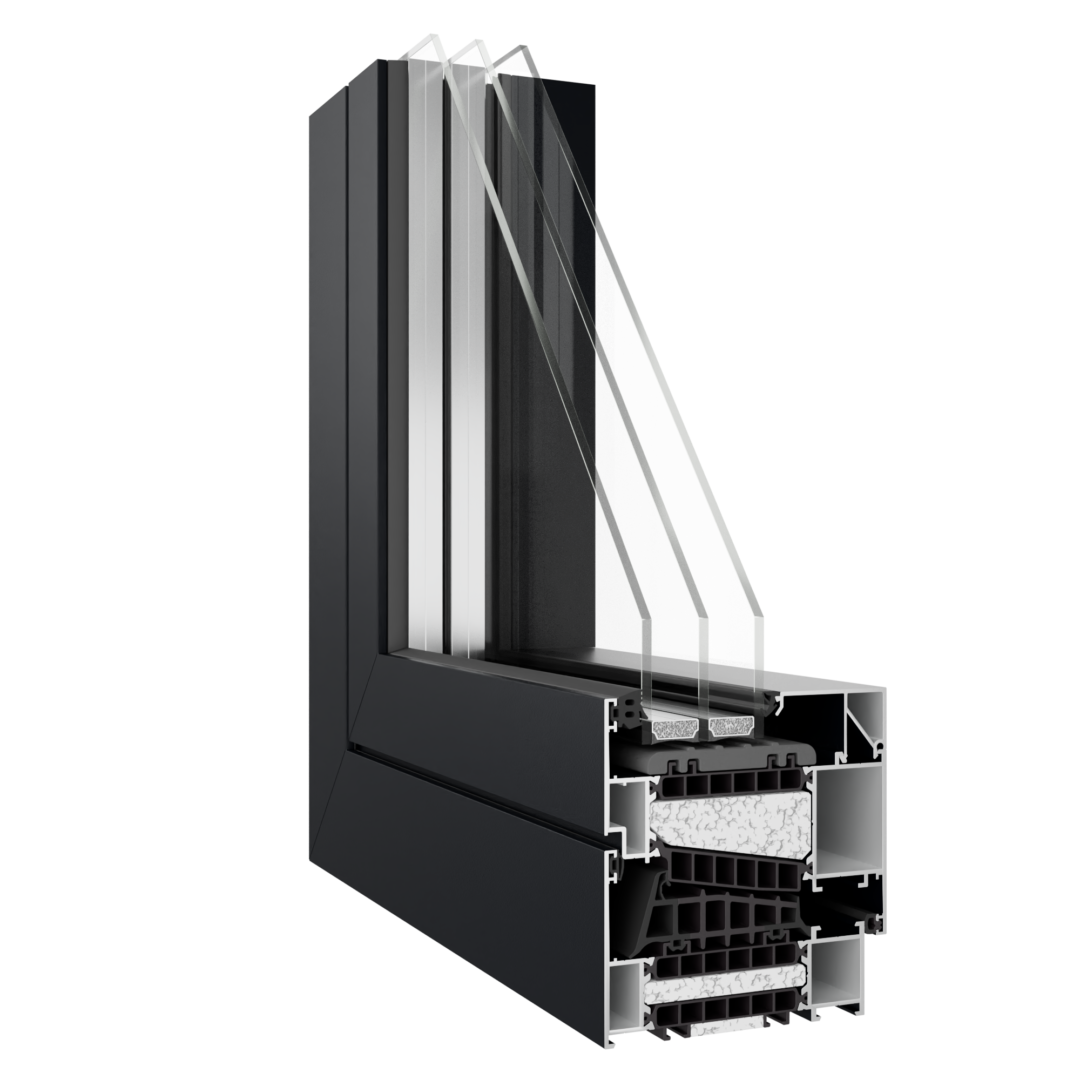

Construction of the profile
- Excellent energy efficiency level Uf = from 0.45 W/m2K with innovative central seal design.
- High sound insulation confirmed by tests.
- Modern snap-in profile design to achieve a single plane on the aluminium line.
- Reversible glazing profile possible.
- Constructions with large surfaces are possible.
- Balcony doors with a low threshold and all-glass corner can be realised.
- Additional windproofing thanks to a gasket at the junction of the profile glazing strip.
- Modern doors with excellent thermal insulation can be made.
- Full range of fittings available on the market: surface-mounted, concealed, under groove type PVC, free form bolt handles, stainless steel handles.
Profile supplier
Window advantages
MICRO-VENTILATION CLIP
A fitting function that allows the room to be ventilated without opening the sash.
HANDLE
Aluminium handle with secustic, security button or key function.
BOTTOM HINGE
Also available in a concealed version – Designo. 3D hinges adjustable in three planes with a load capacity of up to 130 kg.
SPACER
The spacer is available in steel or plastic – the so-called ‘warm frame’, made with polymer or composite technology in a wide range of colours.
HANDLE ROTATION LOCK
A fitting function that enables uncontrolled turning of the handle in the tilt position, while also being responsible for the correct positioning of the sash when it is closed.
TILT&TURN FITTING
A fitting for the comfortable ventilation of rooms with an additional microventilation function and adjustable sash tilt in winter-summer mode.
MICRO-VENTILATION CLIP
A fitting function that allows the room to be ventilated without opening the sash.
HANDLE
Aluminium handle with secustic, security button or key function.
BOTTOM HINGE
Also available in a concealed version – Designo. 3D hinges adjustable in three planes with a load capacity of up to 130 kg.
SPACER
The spacer is available in steel or plastic – the so-called ‘warm frame’, made with polymer or composite technology in a wide range of colours.
HANDLE ROTATION LOCK
A fitting function that enables uncontrolled turning of the handle in the tilt position, while also being responsible for the correct positioning of the sash when it is closed.
TILT&TURN FITTING
A fitting for the comfortable ventilation of rooms with an additional microventilation function and adjustable sash tilt in winter-summer mode.
Colours Yawal TM 102 HI
PLEASE NOTE: The full range of colours, including non-standard veneers, is available in our showrooms and in the sales network of our Business Partners.
The presented graphic materials are for illustrative purposes only and the actual colours and textures of the products may differ from those shown in the advertising materials.
The presented graphics, including the presentation of colours, cannot constitute grounds for a complaint.
