Yawal TM 74 HI

THERMAL INSULATION
Uw 0,75 W/m2K

INSTALLATION DEPTH
74 mm

WNDOWS ACOUSTIC
44 dB

BURGLARY RESISTANCE
RC2, RC2N, RC3

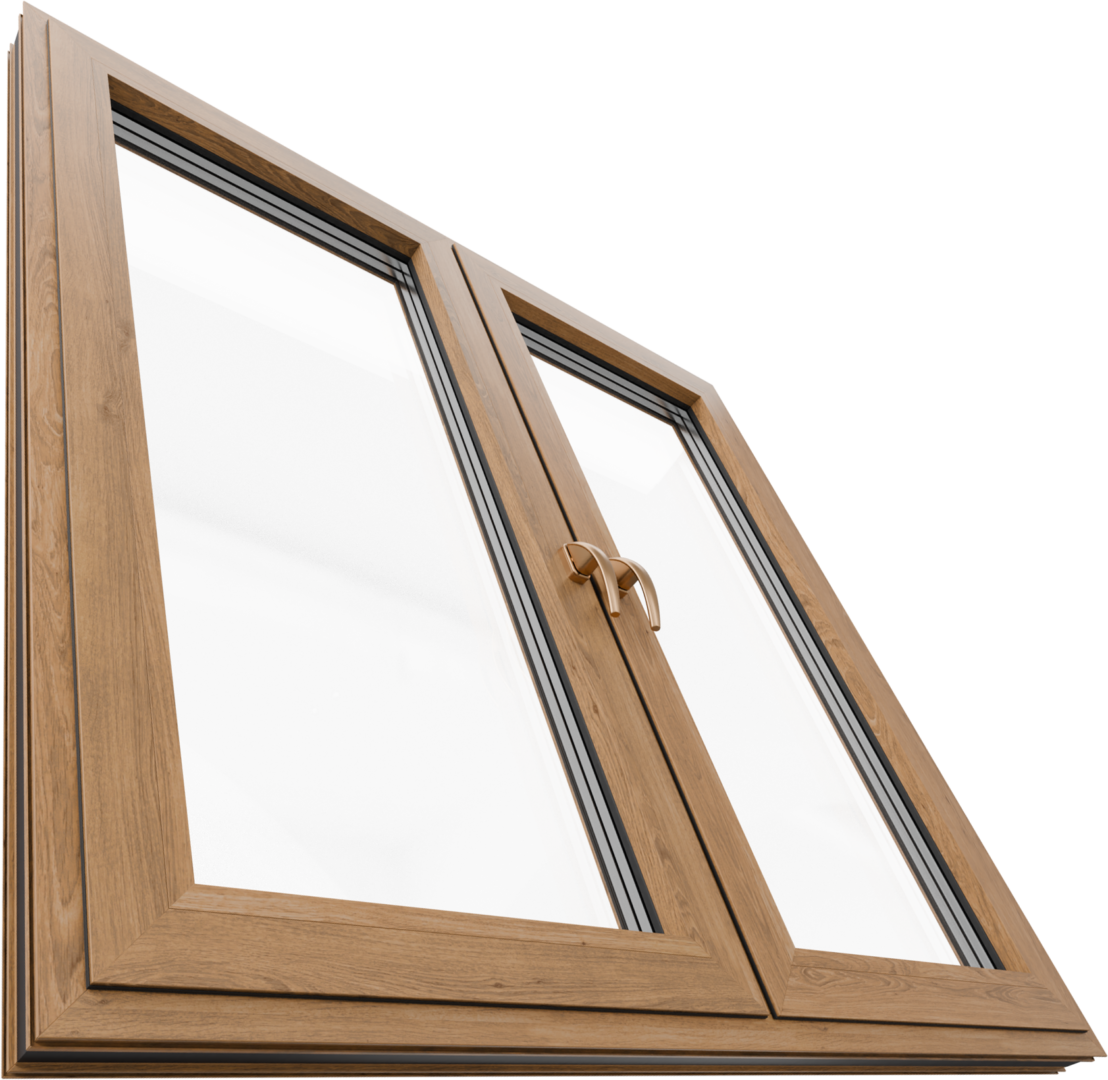

A premium product, TM 74 windows are synonymous with exceptional quality, durability and aesthetics. Based on Yawal profiles, these windows fit perfectly into modern architectural trends, matching both minimalist and more extravagant building structures. Their versatility is manifested in the ability to install components at different angles and in the use of a variety of fillings, including even a 13-57 mm triple-glazed package, which provides excellent thermal and acoustic insulation. A wide range of modern hardware and profiles of different widths allows to achieve a variety of visual effects, meeting individual aesthetic preferences of customers. In addition, large design possibilities, such as sash sizes up to 1600 mm x 2500 mm and a maximum weight of 130 kg, make TM 74 windows suitable for even the most demanding construction projects. The high quality of profile surface finish, including powder coating and the availability of woodgrain and anodized colors.

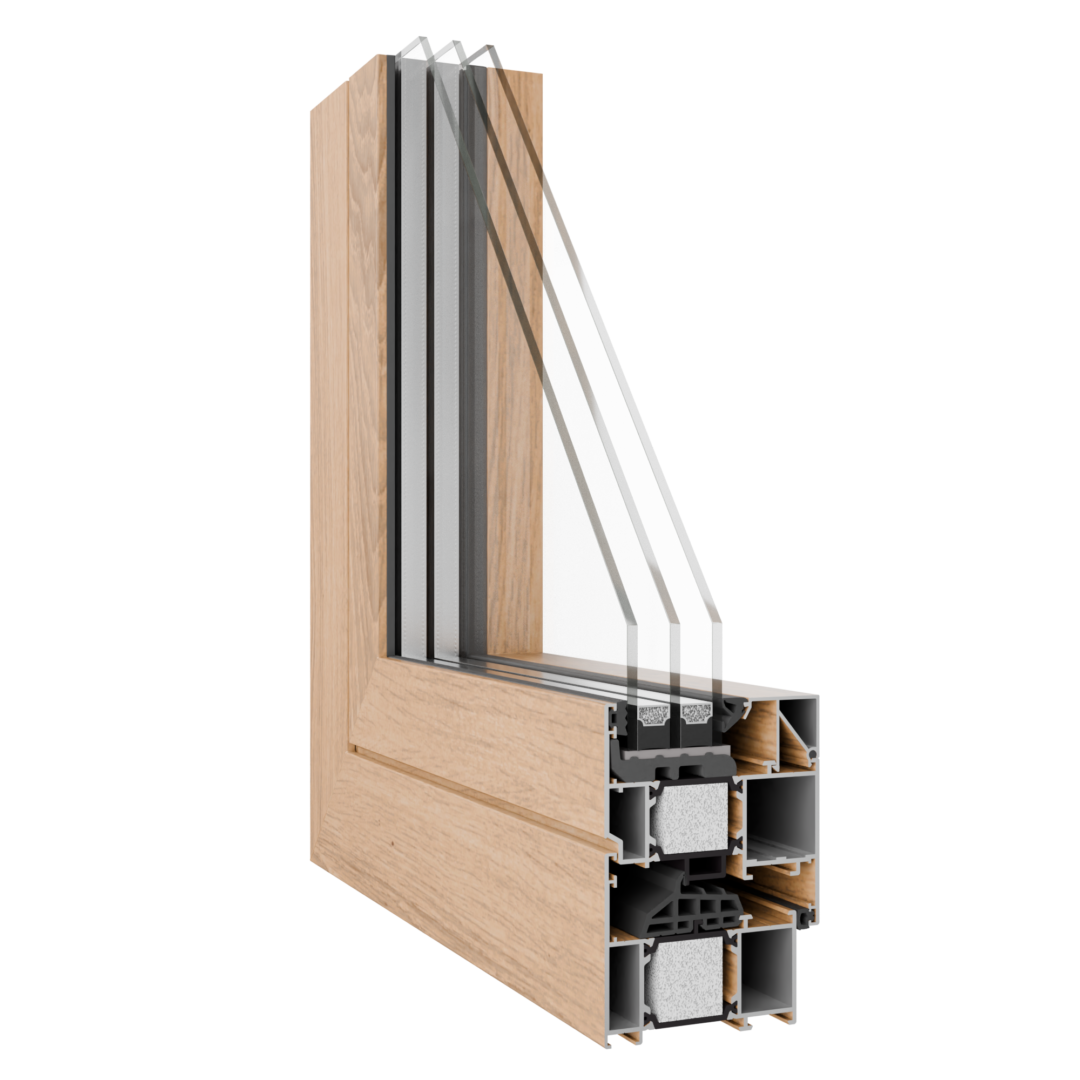

Construction of the profile

Possibility of bending profiles.
Installation of windows in facade systems.
Construction of sets of structures connected at any angle.
The use of electric locks.
Use of surface, concealed or roller hinges.
Use of a full range of modern hardware and individual handles or catches.
Use of the system for the construction of windows, doors, showcases with high thermal insulation parameters.
The use of thermal insulators made of glass-fiber-reinforced polyamide.
Creation of large-size structures thanks to reinforced profiles in the layout from the outside and inside.

Profile supplier

Window advantages

MICRO-VENTILATION CLIP
A fitting function that allows the room to be ventilated without opening the sash.

HANDLE
Aluminium handle with secustic, security button or key function.

BOTTOM HINGE
Also available in a concealed version – Designo. 3D hinges adjustable in three planes with a load capacity of up to 130 kg.

SPACER
The spacer is available in steel or plastic – the so-called ‘warm frame’, made with polymer or composite technology in a wide range of colours.

HANDLE ROTATION LOCK
A fitting function that enables uncontrolled turning of the handle in the tilt position, while also being responsible for the correct positioning of the sash when it is closed.

TILT&TURN FITTING
A fitting for the comfortable ventilation of rooms with an additional microventilation function and adjustable sash tilt in winter-summer mode.

Colours Yawal TM 74 HI

PLEASE NOTE: The full range of colours, including non-standard veneers, is available in our showrooms and in the sales network of our Business Partners.
The presented graphic materials are for illustrative purposes only and the actual colours and textures of the products may differ from those shown in the advertising materials.
The presented graphics, including the presentation of colours, cannot constitute grounds for a complaint.
