- THERMAL INSULATION
- Uw 0,66 W/m2K
- INSTALLATION DEPTH
- 77 mm
- WINDOWS ACOUSTICS
- 48 dB
- NO. OF SEALS
- 2
- NO. OF CHAMBERS
- 3
- BURGLAR RESISTANCE
- RC2, RC3, RC4
TM 77HI windows are a unique premium product, combining strength and stability with extraordinary aesthetic effects. They use Yawal’s aluminum profiles with insulating strips, creating an effective thermal and acoustic barrier. They provide protection against heat loss and outside noise, which translates into peace of mind and energy savings. They are a key element of the facade, having a significant impact on the aesthetic effect and comfort of building users. They have very good insulation parameters, meeting classifications: class 4 according to PN 12207 for air permeability, E1650 according to PN-EN 12208 for water tightness, and 39-48 dB according to PN-EN ISO 140-3 for sound insulation. In addition, their lightweight and durable profiles make them easy to install and operate, allowing them to open and close smoothly with ease. Available in a wide range of colors and designs, TM 77HI windows fit perfectly with any style and taste to create a harmonious exterior aesthetic for a building. Their design combines high quality workmanship, aesthetics and comfort, making them ideal for those seeking not only beauty, but also functionality and durability in their surroundings.

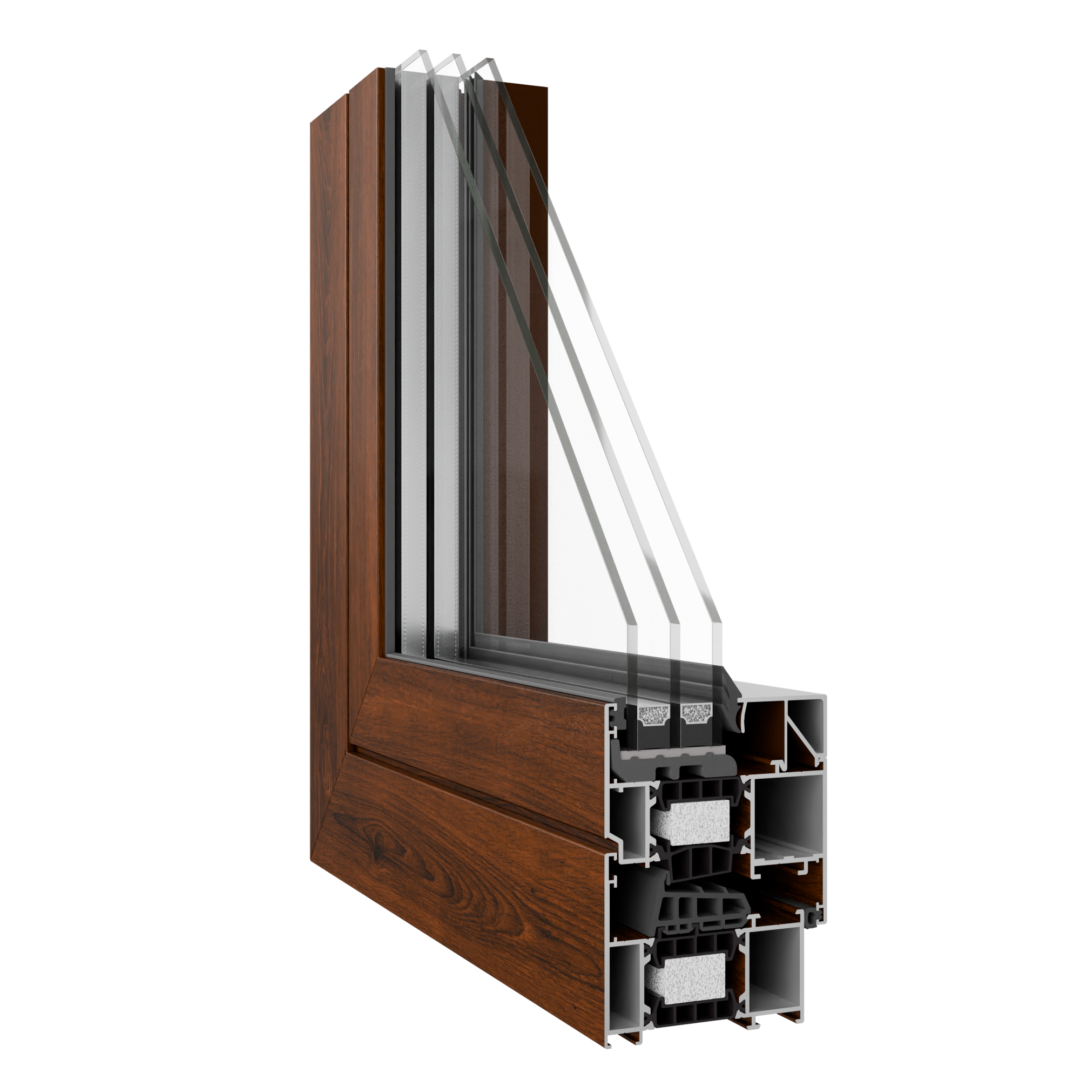

Construction of the profile
- Significant reduction in heating costs.
- Ability to create large area structures for modern façade and interior designs.
- Compatibility with a full range of hardware and control elements.
- Implementation of modern construction solutions in various configurations and layouts.
- Excellent heat transfer coefficient of Uf from 0.8 W/m2K.
- Possibility of making balcony doors with a low threshold.
- Split thermal breaks to prevent bending of wings under the influence of high temperature.
- The possibility of making an all-glass corner.
- TM 77HI system provides excellent parameters of thermal insulation, acoustic insulation, protection against wind, water and security.
Profile supplier

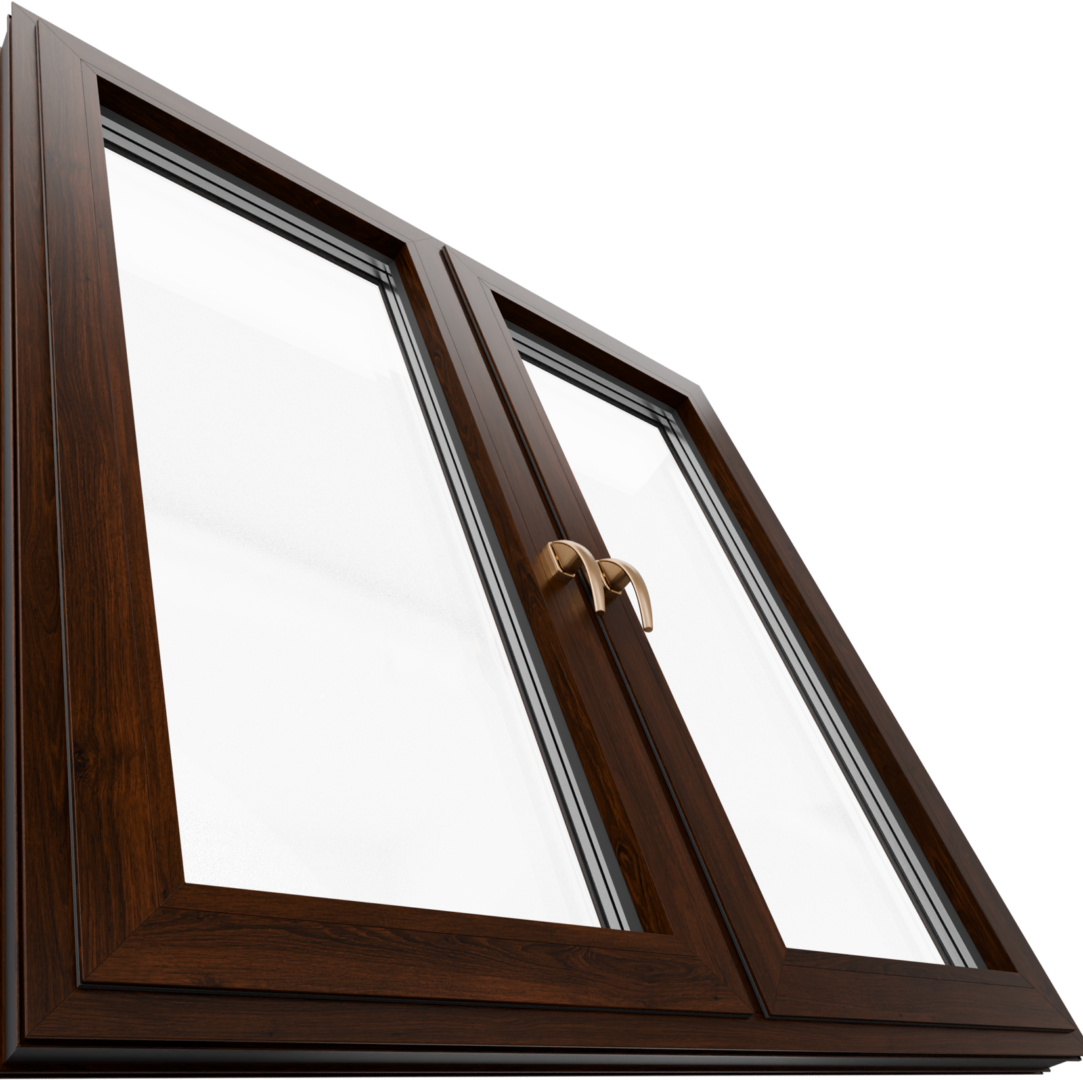

Window advantages
MICRO-VENTILATION CLIP
A fitting function that allows the room to be ventilated without opening the sash.
HANDLE
Aluminium handle with secustic, security button or key function.
BOTTOM HINGE
Also available in a concealed version – Designo. 3D hinges adjustable in three planes with a load capacity of up to 130 kg.
SPACER
The spacer is available in steel or plastic – the so-called ‘warm frame’, made with polymer or composite technology in a wide range of colours.
HANDLE ROTATION LOCK
A fitting function that enables uncontrolled turning of the handle in the tilt position, while also being responsible for the correct positioning of the sash when it is closed.
TILT&TURN FITTING
A fitting for the comfortable ventilation of rooms with an additional microventilation function and adjustable sash tilt in winter-summer mode.
MICRO-VENTILATION CLIP
A fitting function that allows the room to be ventilated without opening the sash.
HANDLE
Aluminium handle with secustic, security button or key function.
BOTTOM HINGE
Also available in a concealed version – Designo. 3D hinges adjustable in three planes with a load capacity of up to 130 kg.
SPACER
The spacer is available in steel or plastic – the so-called ‘warm frame’, made with polymer or composite technology in a wide range of colours.
HANDLE ROTATION LOCK
A fitting function that enables uncontrolled turning of the handle in the tilt position, while also being responsible for the correct positioning of the sash when it is closed.
TILT&TURN FITTING
A fitting for the comfortable ventilation of rooms with an additional microventilation function and adjustable sash tilt in winter-summer mode.
Colours Yawal TM 77 HI
PLEASE NOTE: The full range of colours, including non-standard veneers, is available in our showrooms and in the sales network of our Business Partners.
The presented graphic materials are for illustrative purposes only and the actual colours and textures of the products may differ from those shown in the advertising materials.
The presented graphics, including the presentation of colours, cannot constitute grounds for a complaint.
