- THERMAL INSULATION
- Uw 0,94 W/ m2K
- NUMBER OF CELLS
- 5
- INSTALLATION DEPTH
- 70 mm
- GLASS PACKAGE
- 40 mm

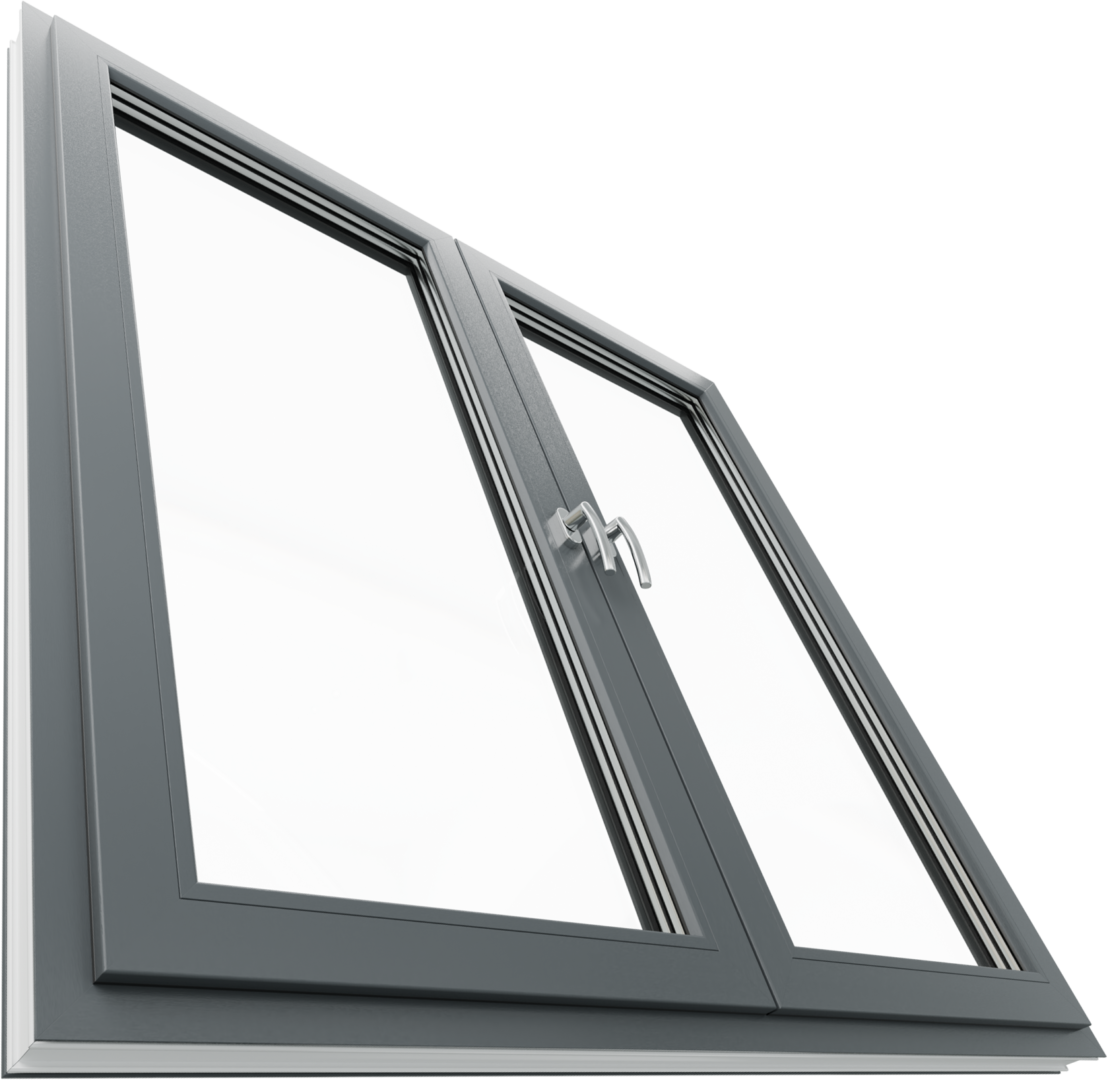

Perfectline Veka 70 AD windows are manufactured based on Veka’s Perfectline profile system. Thanks to the use of the sash and frame with simple, raw shapes, we have achieved a classic appearance of the joinery, which will perfectly blend into the minimalist style of your home. The closed steel reinforcement combined with the A class profile improves the static properties of the window and increases its strength. The windows of the IMPRESSIVE series are dedicated in particular to single-family houses. The multitude of glazing packages available, the variety of shapes and the wide range of colours offer unlimited configuration possibilities. By choosing products from the IMPRESSIVE series, you will receive windows optimally adapted to the style of your home.

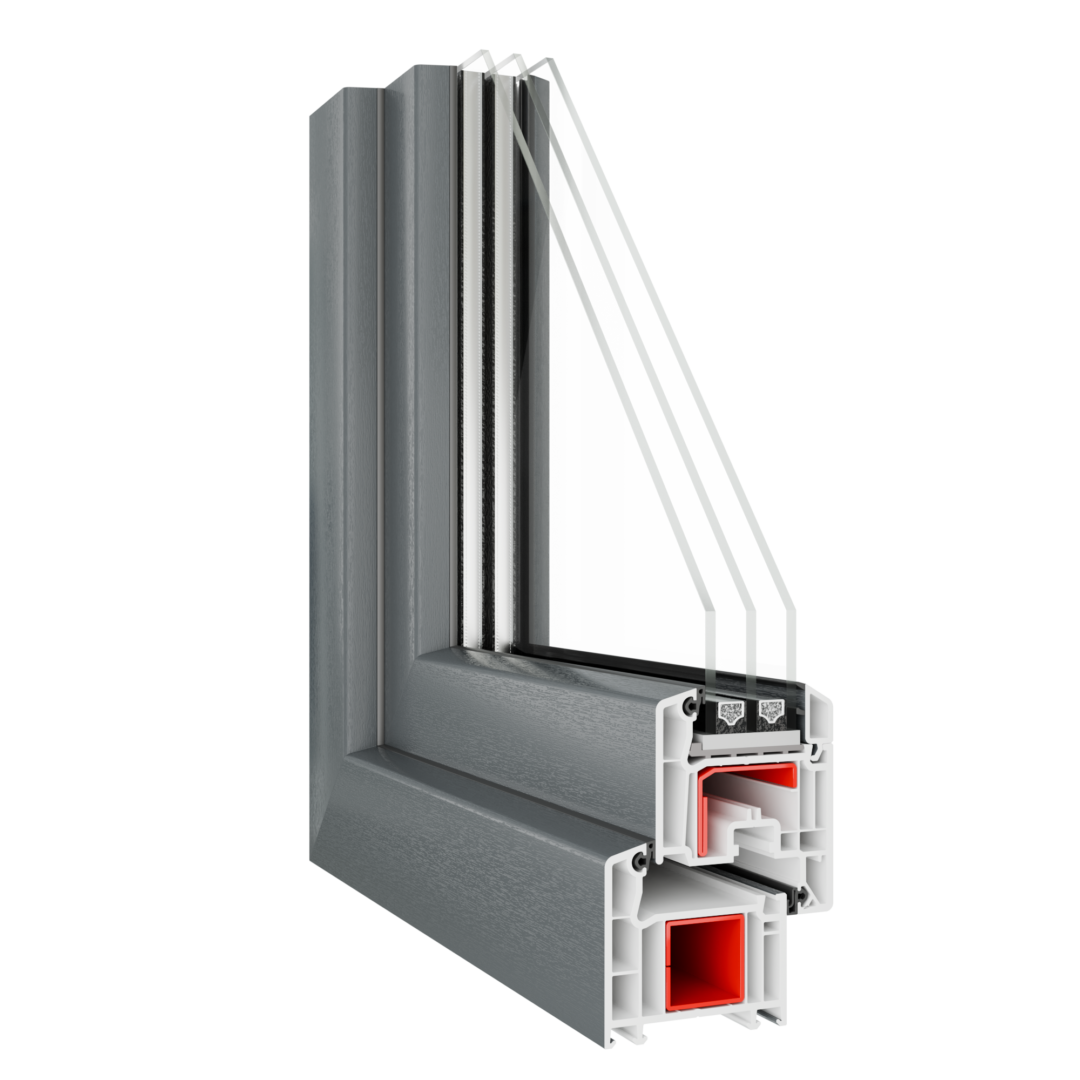

Construction of the profile
- A 5-chamber system with an installation depth of 70 mm providing thermal protection at a very high level.
- The 3 mm thick outer walls confirm our window’s Class A and meet the highest RAL standards – ‘Class A’ (EN 3.12608).
- Galvanised steel sash reinforcement ensures stability and increases security
- Two-surface gaskets guarantee very good tightness, acoustic and thermal insulation. Gasket surfaces oriented with a 15-degree slope (identical to the profiles) – allows excellent drainage of water and dirt.
- Fitting notch in the axis of 13 mm allows the use of stronger fitting elements of ROTO company, including anti-burglary fittings.
- Reliable embedding of the glass in the profile at a depth of 24 mm limits the condensation of water vapour on the glass and makes the window more difficult to force through for unwelcome guests.
- Design with classic appearance and balanced proportions. The sober, neutral appearance and external contours match virtually any façade. Profiles suitable for bending curves. Possibility to use one of three types of muntin bars: internal, external sticking or dividing the window structure.
Profile supplier
Window advantages
MICRO-VENTILATION CLIP
A fitting function that allows the room to be ventilated without opening the sash.
HANDLE
Aluminium handle with secustic, security button or key function.
BOTTOM HINGE
Also available in a concealed version – Designo. 3D hinges adjustable in three planes with a load capacity of up to 130 kg.
SPACER
The spacer is available in steel or plastic – the so-called ‘warm frame’, made with polymer or composite technology in a wide range of colours.
HANDLE ROTATION LOCK
A fitting function that enables uncontrolled turning of the handle in the tilt position, while also being responsible for the correct positioning of the sash when it is closed.
TILT&TURN FITTING
A fitting for the comfortable ventilation of rooms with an additional microventilation function and adjustable sash tilt in winter-summer mode.
MICRO-VENTILATION CLIP
A fitting function that allows the room to be ventilated without opening the sash.
HANDLE
Aluminium handle with secustic, security button or key function.
BOTTOM HINGE
Also available in a concealed version – Designo. 3D hinges adjustable in three planes with a load capacity of up to 130 kg.
SPACER
The spacer is available in steel or plastic – the so-called ‘warm frame’, made with polymer or composite technology in a wide range of colours.
HANDLE ROTATION LOCK
A fitting function that enables uncontrolled turning of the handle in the tilt position, while also being responsible for the correct positioning of the sash when it is closed.
TILT&TURN FITTING
A fitting for the comfortable ventilation of rooms with an additional microventilation function and adjustable sash tilt in winter-summer mode.
Colours Perfectline Veka 70 AD
PLEASE NOTE: The full range of colours, including non-standard veneers, is available in our showrooms and in the sales network of our Business Partners.
The presented graphic materials are for illustrative purposes only and the actual colours and textures of the products may differ from those shown in the advertising materials.
The presented graphics, including the presentation of colours, cannot constitute grounds for a complaint.
