- THERMAL INSULATION
- Uw 0,77 W/m2K
- NUMBER OF CHAMBERS
- 5+
- INSTALLATION DEPTH
- 76 mm
- GLAZING PACKAGE
- 48 mm

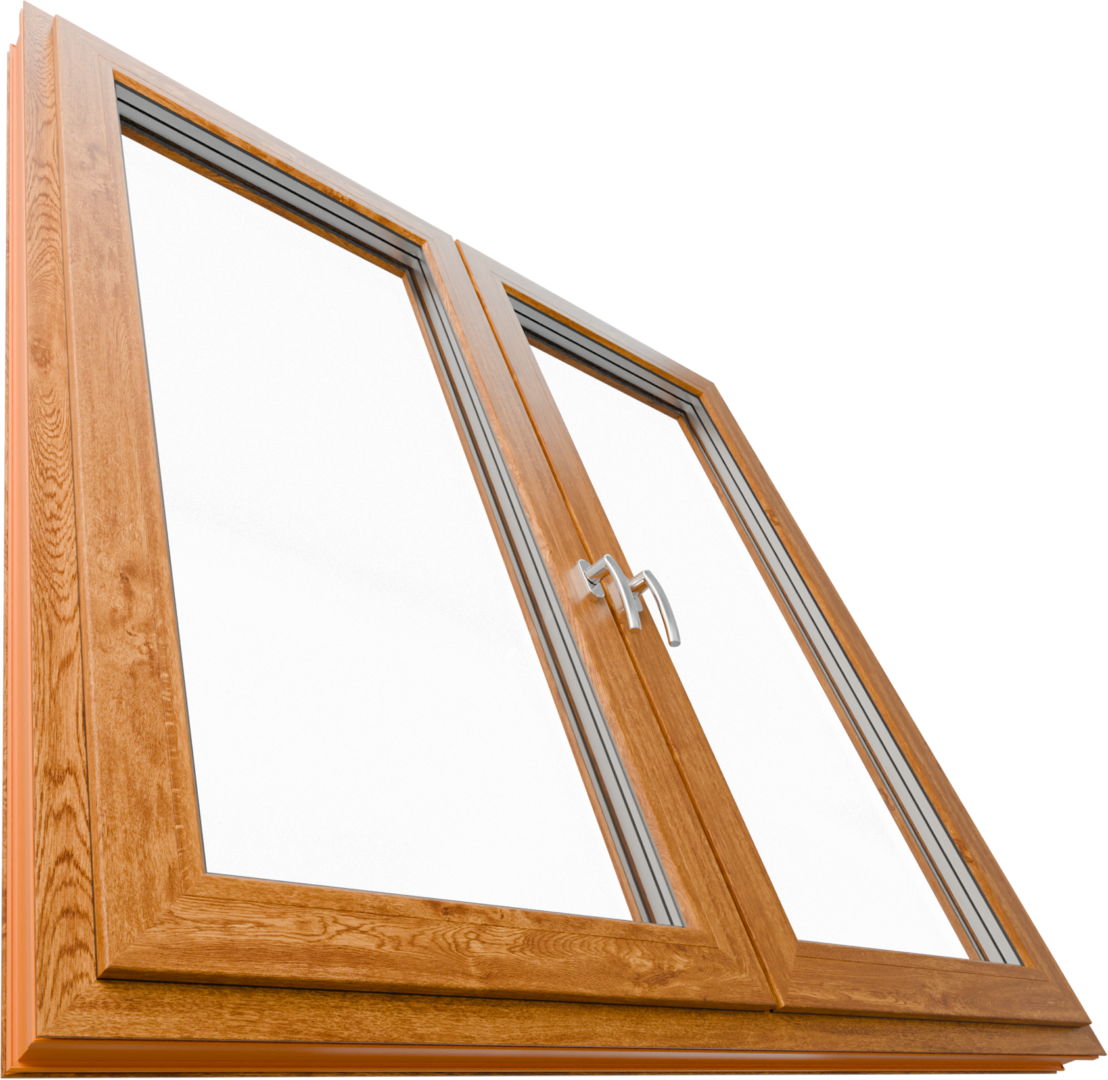

The Softline Veka 76 MD window is based on the Softline 76 system and has an installation depth of 76 mm. It is an alternative to the 70 mm and 82 mm systems. EXCELLENT LINE 76 MD is a top quality product. Thanks to the steel reinforcements in the frame, made from a closed 30 x 30 mm profile, it demonstrates excellent thermal and mechanical performance. This type of solution increases security and thus reduces the risk of break-ins and strengthens the window from a structural point of view. A gasket is also used in the frame to increase thermal and acoustic protection. The glazing beads are flush with the frame, sash profiles. Softline 76 profiles have a thermal insulation value of U = 1.1 W/(m²-K).

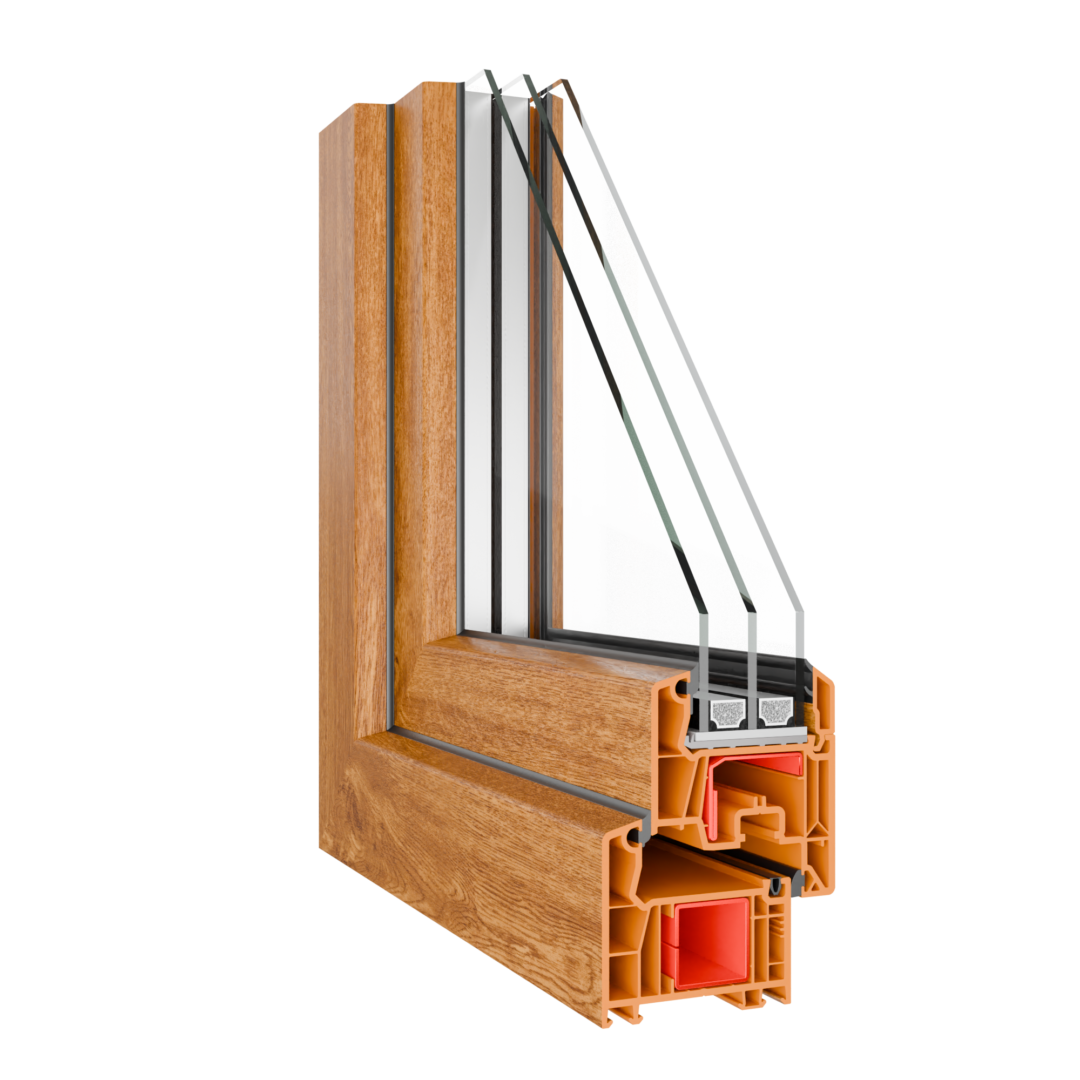

Construction of the profile
- 5-chamber profile, 76 mm thick
- MD system with centre seal
- AD system without centre seal
- used reinforcement system made of closed steel profile 30 x 30 mm
- multi-chamber construction provides excellent thermal and acoustic protection
- glazing rebate depth of 20 mm
- uniform height of slats – 25 mm.
- even appearance of the sash seal and glazing bead.
- height of glazing bead – 25 mm
- section height 122 mm
- precisely thought-out system of slats with a 2 mm pitch
- the profile is available in the SPECTRAL coating
Profile supplier
Window advantages
MICRO-VENTILATION CLIP
A fitting function that allows the room to be ventilated without opening the sash.
HANDLE
Aluminium handle with secustic, security button or key function.
BOTTOM HINGE
Also available in a concealed version – Designo. 3D hinges adjustable in three planes with a load capacity of up to 130 kg.
SPACER
The spacer is available in steel or plastic – the so-called ‘warm frame’, made with polymer or composite technology in a wide range of colours.
HANDLE ROTATION LOCK
A fitting function that enables uncontrolled turning of the handle in the tilt position, while also being responsible for the correct positioning of the sash when it is closed.
TILT&TURN FITTING
A fitting for the comfortable ventilation of rooms with an additional microventilation function and adjustable sash tilt in winter-summer mode.
MICRO-VENTILATION CLIP
A fitting function that allows the room to be ventilated without opening the sash.
HANDLE
Aluminium handle with secustic, security button or key function.
BOTTOM HINGE
Also available in a concealed version – Designo. 3D hinges adjustable in three planes with a load capacity of up to 130 kg.
SPACER
The spacer is available in steel or plastic – the so-called ‘warm frame’, made with polymer or composite technology in a wide range of colours.
HANDLE ROTATION LOCK
A fitting function that enables uncontrolled turning of the handle in the tilt position, while also being responsible for the correct positioning of the sash when it is closed.
TILT&TURN FITTING
A fitting for the comfortable ventilation of rooms with an additional microventilation function and adjustable sash tilt in winter-summer mode.
Colours Softline Veka 76 MD
PLEASE NOTE: The full range of colours, including non-standard veneers, is available in our showrooms and in the sales network of our Business Partners.
The presented graphic materials are for illustrative purposes only and the actual colours and textures of the products may differ from those shown in the advertising materials.
The presented graphics, including the presentation of colours, cannot constitute grounds for a complaint.
Explore other PVC windows

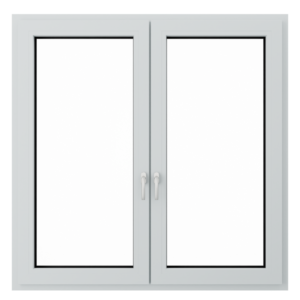

BluEvolution Salamander 82
- THERMAL INSULATION
- Uw 0,74 W/m2K
- NO. OF CHAMBERS
- 6
- INSTALLATION DEPTH
- 82 mm
- GLAZING PACKAGE
- 52 mm

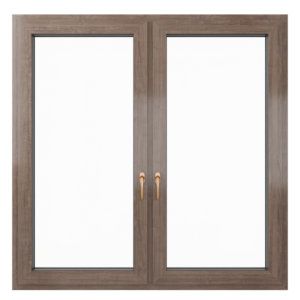

Energeto NEO
