- THERMAL INSULATION
- Uw 0,73 W/ m2K
- INSTALLATION DEPTH
- 82 mm
- WINDOW ACOUSTICS
- 47 dB
- GLASS PACKAGE
- 52 mm
- NO. OF SEALS
- 3
- NO. OF CELLS
- 7

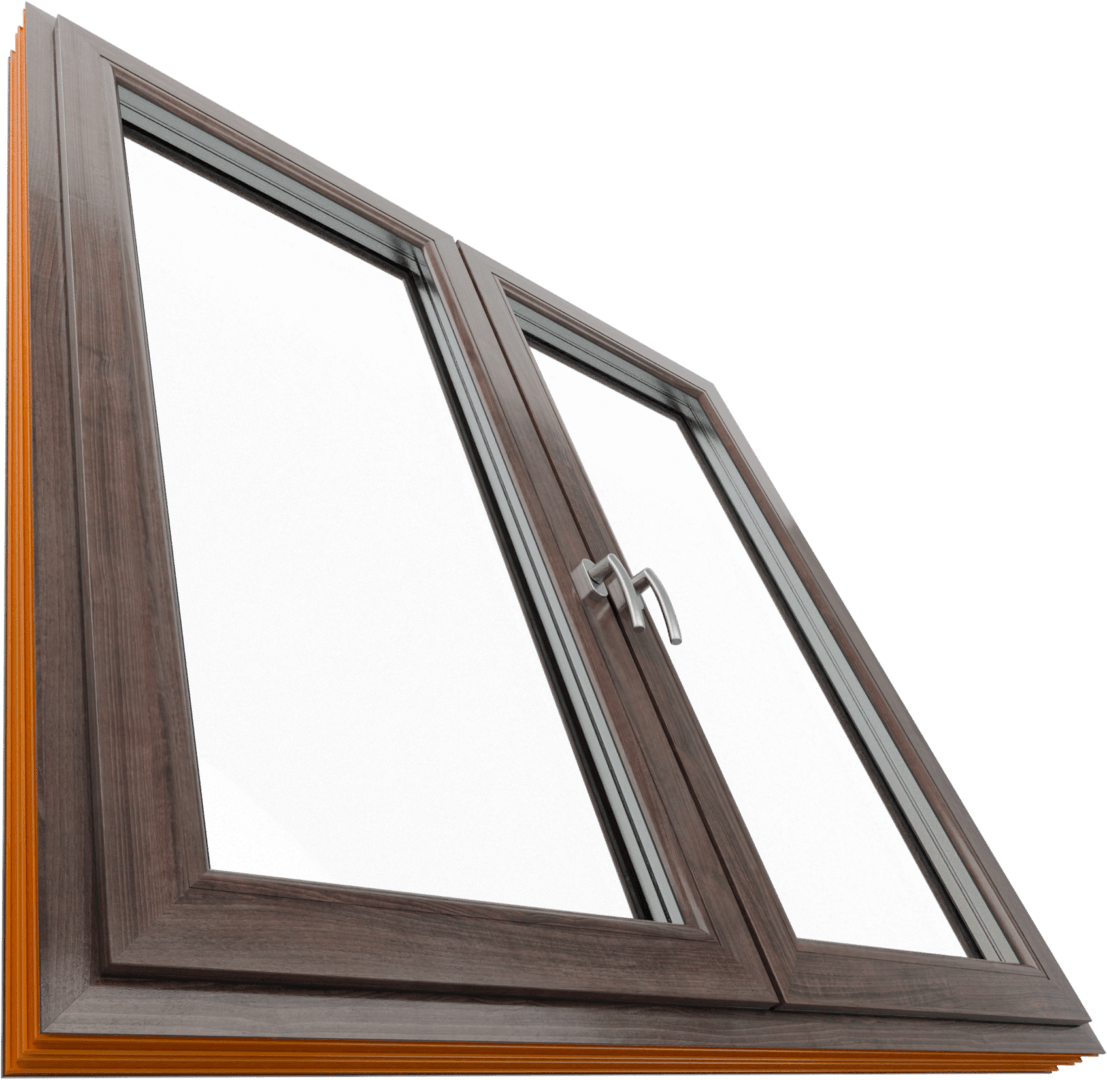

We developed the Softline Veka 82 MD windows with modern low-energy building projects in mind. The standard 3-glazing package with Ug = 0.5 significantly reduces energy consumption. The use of 7-chamber Veka Softline 82 profiles equipped with a triple sealing system allows the production of windows with one of the best heat transfer coefficients. Deep embedding of 3 or 4 pane packets enables effective elimination of thermal bridges. Superb thermal insulation parameters combined with classic design make these windows a unique proposal for investors planning to build a low-energy and passive house.

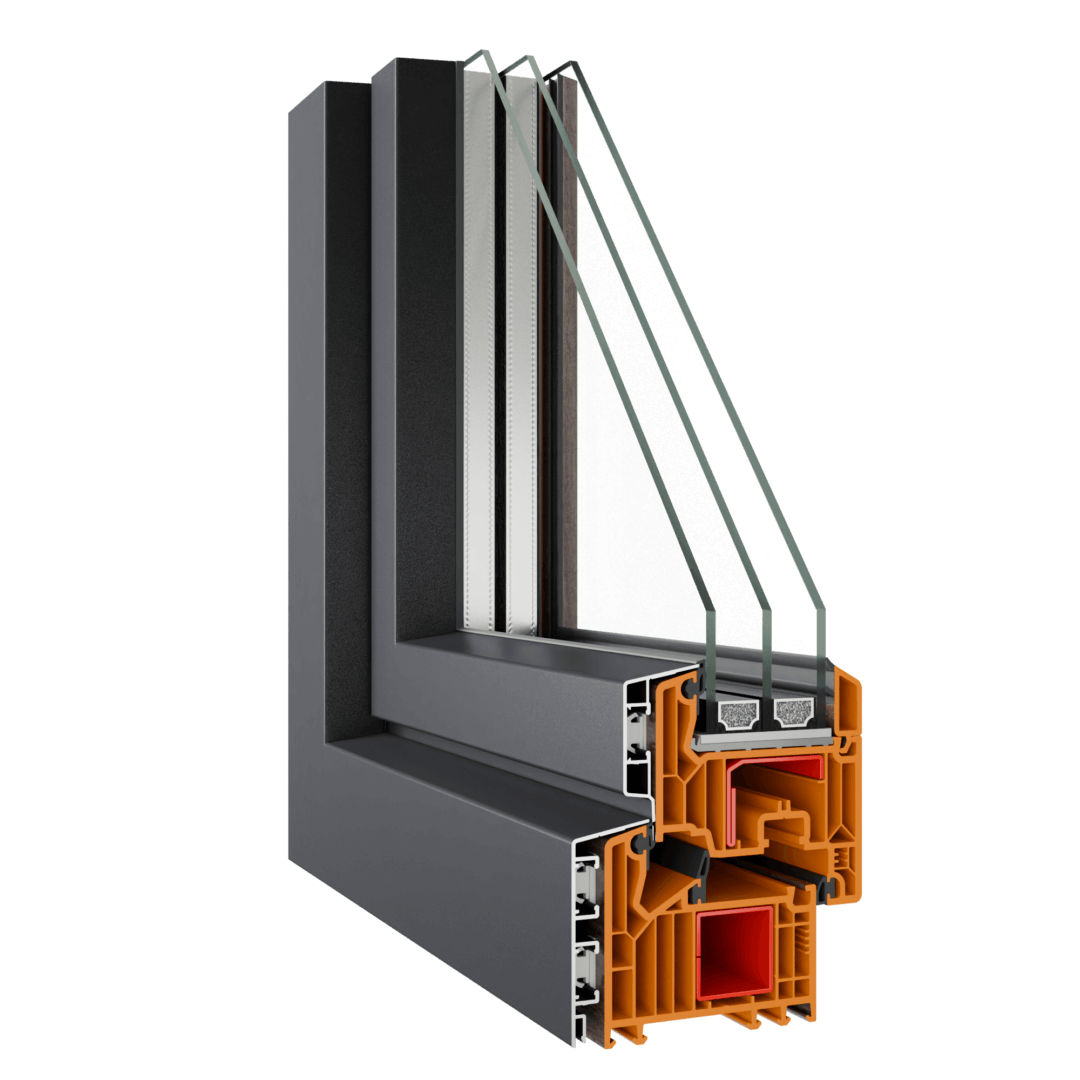

Profile design

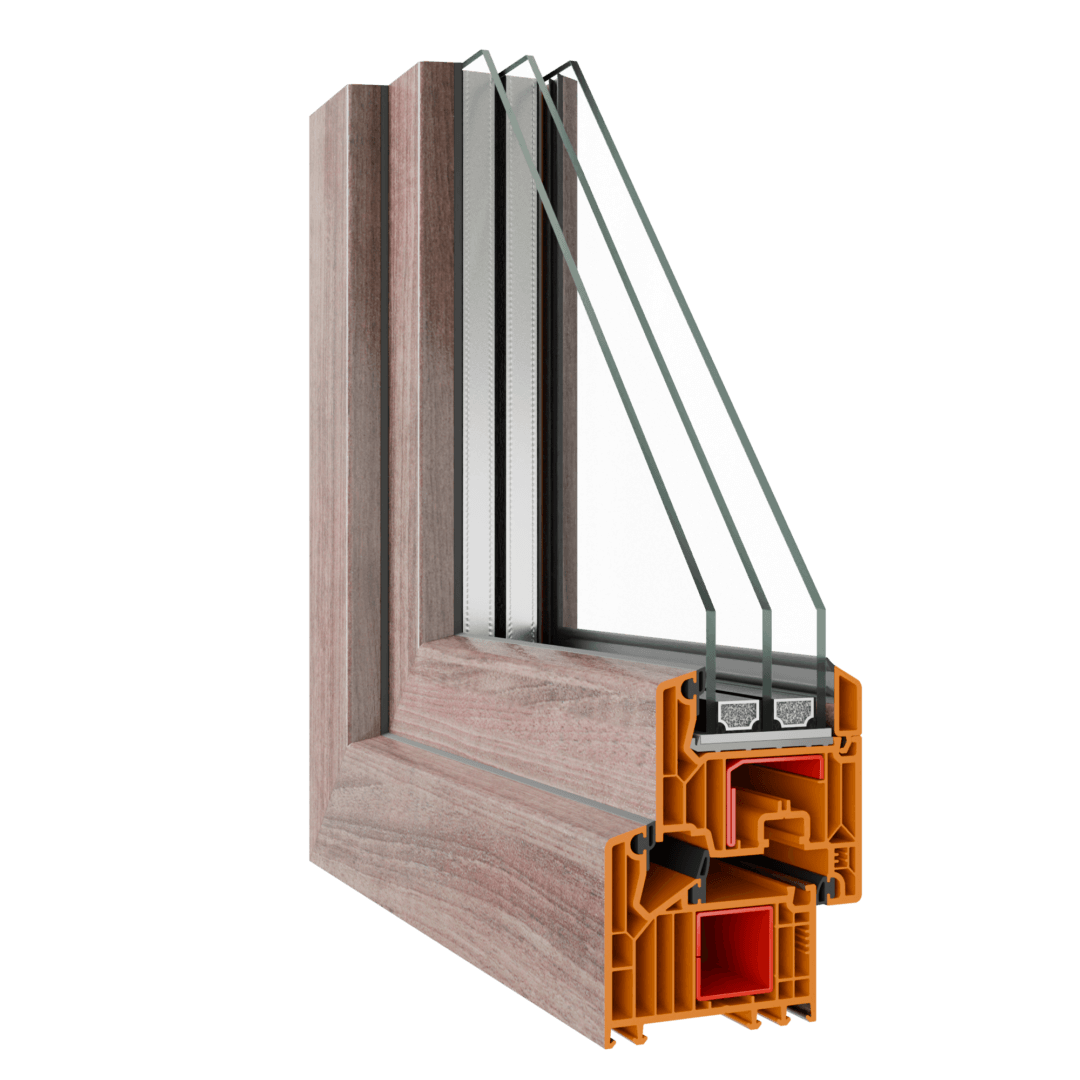

- 7-chamber profiles, 82 mm thick.
- System with steel reinforcement.
- Sash reinforcement made of galvanised steel.
- Multi-chamber construction guarantees excellent thermal and acoustic insulation.
- Fitting rebate located on the 13 mm axis allows the use of stronger fitting elements.
- The system of three seals (external, central and internal) perfectly insulates against noise, moisture and cold.
- Burglary resistance to class RC2.
Profile supplier
Window advantages
MICRO-VENTILATION CLIP
A fitting function that allows the room to be ventilated without opening the sash.
HANDLE
Aluminium handle with secustic, security button or key function.
BOTTOM HINGE
Also available in a concealed version – Designo. 3D hinges adjustable in three planes with a load capacity of up to 130 kg.
SPACER
The spacer is available in steel or plastic – the so-called ‘warm frame’, made with polymer or composite technology in a wide range of colours.
HANDLE ROTATION LOCK
A fitting function that enables uncontrolled turning of the handle in the tilt position, while also being responsible for the correct positioning of the sash when it is closed.
TILT&TURN FITTING
A fitting for the comfortable ventilation of rooms with an additional microventilation function and adjustable sash tilt in winter-summer mode.
MICRO-VENTILATION CLIP
A fitting function that allows the room to be ventilated without opening the sash.
HANDLE
Aluminium handle with secustic, security button or key function.
BOTTOM HINGE
Also available in a concealed version – Designo. 3D hinges adjustable in three planes with a load capacity of up to 130 kg.
SPACER
The spacer is available in steel or plastic – the so-called ‘warm frame’, made with polymer or composite technology in a wide range of colours.
HANDLE ROTATION LOCK
A fitting function that enables uncontrolled turning of the handle in the tilt position, while also being responsible for the correct positioning of the sash when it is closed.
TILT&TURN FITTING
A fitting for the comfortable ventilation of rooms with an additional microventilation function and adjustable sash tilt in winter-summer mode.
Colours Softline Veka 82 MD
PLEASE NOTE: The full range of colours, including non-standard veneers, is available in our showrooms and in the sales network of our Business Partners.
The presented graphic materials are for illustrative purposes only and the actual colours and textures of the products may differ from those shown in the advertising materials.
The presented graphics, including the presentation of colours, cannot constitute grounds for a complaint.
Explore other PVC windows

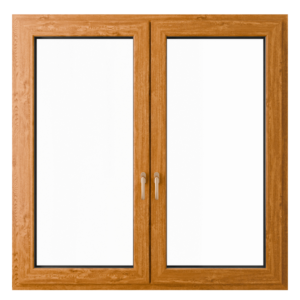

Softline Veka 76 MD
